Specialist

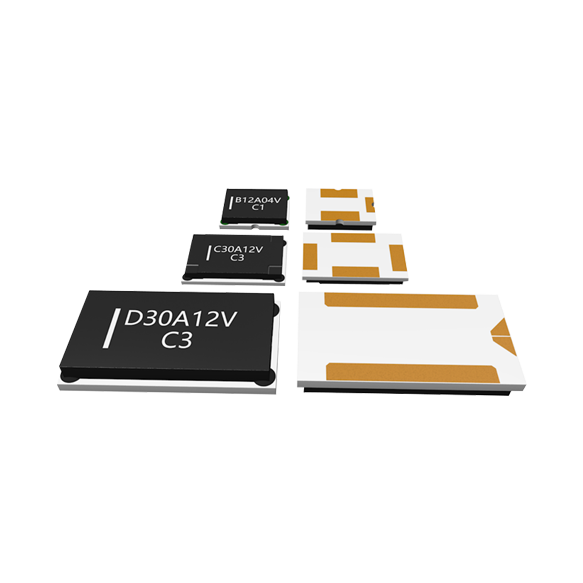

Protect lithium battery from overcurrent and overvoltage
Suitable for high density surface mount
fast response time
ROHS compliant
Application
Laptops, Tablets
Vacuum cleaners, sweeping robots
Rechargeable power tools, garden tools
| P/N | Irated (A) | Cell In Series | Vmax (Vdc) | Ibreak (A) | Vop (V) | Rheater (Ω) | Rfuse (mΩ) | Specifications |
| WSFB1204 | 12 | 1 | 36 | 50 | 3.0-4.5 | 0.6-1.5 | 1.5-3.5 | Download |
| WSFB1208 | 12 | 2 | 36 | 50 | 4.0-9.0 | 2.0-3.2 | 1.5-3.5 | Download |
| WSFB1212 | 12 | 3 | 36 | 50 | 7.4-13.8 | 5.7-9.9 | 1.5-3.5 | Download |
| WSFB1214 | 12 | 4 | 36 | 50 | 10.5-19.6 | 11.2-20.0 | 1.5-3.5 | Download |
| WSFB1504 | 15 | 1 | 36 | 50 | 3.0-4.5 | 0.6-1.5 | 1.0-3.0 | Download |
| WSFB1508 | 15 | 2 | 36 | 50 | 5.0-9.0 | 2.2-3.3 | 1.0-3.0 | Download |
| WSFB1512 | 15 | 3 | 36 | 50 | 7.4-13.8 | 5.5-8.4 | 1.0-3.0 | Download |
| WSFB1514 | 15 | 4 | 36 | 50 | 10.5-19.6 | 10.4-15.8 | 1.0-3.0 | Download |
| WSFB1520 | 15 | 5 | 36 | 50 | 14.4-23.5 | 17.9-29.1 | 1.0-3.0 | Download |
