Specialist

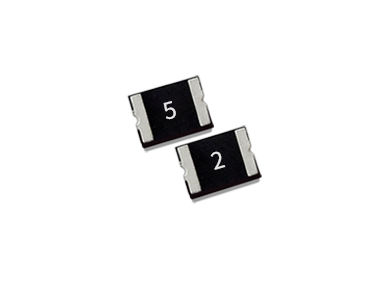

◆ Surface Mount Devices
◆ Standard 0805mils footprint
◆ Surface mount packaging for automated assembly
◆ Compatible with Pb and Pb-free solder re flow profiles.
◆ UL(E352136), C-UL(E352136), TUV(R50306074)
◆ RoHS, Reach, HF compliance
Application
◆ Mobile phones
◆ PC motherboards
◆ PDAS/Digital cameras
◆ USB port protection
◆ HDMI source protection
◆ Game console port protection
| P/N | IH(A) | IT(A) | Vmax(V) | I max(A) | T (Max time to trip) (A) |
T (Max time to trip) (Sec) |
Pd typ（W） | R min(Ω) | R max(Ω) | Specifications |
| TLC-PSMD150 | 1.50 | 3.00 | 6.0 | 100 | 8.0 | 0.50 | 0.60 | 0.040 | 0.160 | Download |
| TLC-PSMD110/13.2 | 1.10 | 2.20 | 13.2 | 50 | 8.0 | 0.30 | 0.60 | 0.070 | 0.325 | Download |
| TLC-PSMD110 | 1.10 | 2.20 | 6.0 | 100 | 8.0 | 0.30 | 0.60 | 0.060 | 0.210 | Download |
| TLC-PSMD100/13.2 | 1.00 | 2.00 | 13.2 | 50 | 8.0 | 0.30 | 0.60 | 0.070 | 0.325 | Download |
| TLC-PSMD100 | 1.00 | 2.00 | 6.0 | 100 | 8.0 | 0.30 | 0.60 | 0.060 | 0.250 | Download |
| TLC-PSMD075/8 | 0.75 | 1.50 | 8 | 100 | 8.0 | 0.20 | 0.60 | 0.090 | 0.350 | Download |
| TLC-PSMD075 | 0.75 | 1.50 | 6.0 | 100 | 8.0 | 0.20 | 0.60 | 0.090 | 0.350 | Download |
| TLC-PSMD050/9 | 0.50 | 1.00 | 9 | 100 | 8.0 | 0.10 | 0.50 | 0.150 | 0.900 | Download |
| TLC-PSMD050 | 0.50 | 1.00 | 6.0 | 100 | 8.0 | 0.10 | 0.50 | 0.150 | 0.900 | Download |
| TLC-PSMD035/12 | 0.35 | 0.75 | 12 | 100 | 8.0 | 0.10 | 0.50 | 0.250 | 1.200 | Download |
| TLC-PSMD035/9 | 0.35 | 0.75 | 9 | 100 | 8.0 | 0.10 | 0.50 | 0.250 | 1.200 | Download |
| TLC-PSMD035 | 0.35 | 0.75 | 6.0 | 100 | 8.0 | 0.10 | 0.50 | 0.250 | 1.200 | Download |
| TLC-PSMD030 | 0.30 | 0.75 | 6.0 | 100 | 8.0 | 0.10 | 0.50 | 0.250 | 1.200 | Download |
| TLC-PSMD020/12 | 0.20 | 0.50 | 12 | 100 | 8.0 | 0.02 | 0.50 | 0.650 | 3.500 | Download |
| TLC-PSMD020 | 0.20 | 0.50 | 9.0 | 100 | 8.0 | 0.02 | 0.50 | 0.650 | 3.500 | Download |
| TLC-PSMD010/24 | 0.10 | 0.30 | 24.0 | 100 | 0.5 | 1.50 | 0.50 | 1.000 | 7.500 | Download |
| TLC-PSMD010 | 0.10 | 0.30 | 15 | 100 | 0.5 | 1.50 | 0.50 | 1.000 | 7.500 | Download |
| TLC-PSMD005/60 | 0.05 | 0.15 | 60 | 40 | 0.25 | 1.50 | 0.50 | 3.600 | 50.00 | Download |
| TLC-PSMD005 | 0.05 | 0.15 | 30 | 100 | 0.25 | 1.50 | 0.50 | 3.600 | 50.00 | Download |
