Specialist

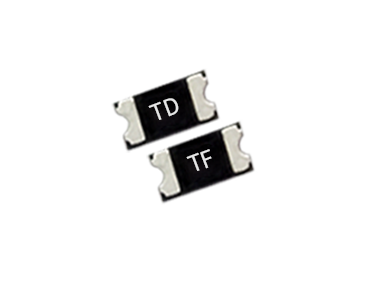

◆ Surface Mount Devices
◆ Standard 3216mm(1206mils) footprint
◆ Surface mount packaging for automated assembly
◆ Compatible with Pb and Pb-free solder Re flow profiles.
◆ UL(E352136), C-UL(E352136), TUV(R50306075)
◆ RoHS, Reach, HF compliance
Application
◆ Mobile phones- Battery and port protection
◆ PC motherboards - Plug and Play protection
◆ PDAS/Digital cameras
◆ USB port protection
◆ HDMI source protection
◆ Game console port protection
| P/N | IH(A) | IT(A) | Vmax(V) | I max(A) | T (Max time to trip) (A) |
T (Max time to trip) (Sec) |
Pd typ（W） | R min(Ω) | R max(Ω) | Specifications |
| TLC-NSMD200/12 | 2.00 | 4.00 | 12 | 100 | 8.00 | 1.00 | 0.70 | 0.020 | 0.120 | Download |
| TLC-NSMD200 | 2.00 | 4.00 | 6 | 100 | 8.00 | 1.00 | 0.70 | 0.020 | 0.085 | Download |
| TLC-NSMD150/8 | 1.50 | 3.00 | 8 | 100 | 8.00 | 0.30 | 0.60 | 0.030 | 0.170 | Download |
| TLC-NSMD150 | 1.50 | 3.00 | 6 | 100 | 8.00 | 0.3 | 0.60 | 0.030 | 0.130 | Download |
| TLC-NSMD110/24 | 1.10 | 2.20 | 24 | 100 | 8.00 | 0.10 | 0.60 | 0.060 | 0.280 | Download |
| TLC-NSMD110/16 | 1.10 | 2.20 | 16 | 100 | 8.00 | 0.10 | 0.60 | 0.060 | 0.280 | Download |
| TLC-NSMD110/13.2 | 1.10 | 2.20 | 13.2 | 100 | 8.00 | 0.10 | 0.60 | 0.060 | 0.280 | Download |
| TLC-NSMD110/12 | 1.10 | 2.20 | 12 | 100 | 8.00 | 0.10 | 0.60 | 0.060 | 0.280 | Download |
| TLC-NSMD110/8 | 1.10 | 2.20 | 8 | 100 | 8.00 | 0.10 | 0.60 | 0.060 | 0.280 | Download |
| TLC-NSMD110 | 1.10 | 2.20 | 6 | 100 | 8.00 | 0.10 | 0.60 | 0.060 | 0.200 | Download |
| TLC-NSMD100/24 | 1.00 | 2.00 | 24 | 100 | 8.00 | 0.10 | 0.60 | 0.060 | 0.280 | Download |
| TLC-NSMD100/16 | 1.00 | 2.00 | 16 | 100 | 8.00 | 0.10 | 0.60 | 0.060 | 0.280 | Download |
| TLC-NSMD100/13.2 | 1.00 | 2.00 | 13.2 | 100 | 8.00 | 0.10 | 0.60 | 0.060 | 0.280 | Download |
| TLC-NSMD100/12 | 1.00 | 2.00 | 12 | 100 | 8.00 | 0.10 | 0.60 | 0.060 | 0.280 | Download |
| TLC-NSMD100/8 | 1.00 | 2.00 | 8 | 100 | 8.00 | 0.10 | 0.60 | 0.060 | 0.280 | Download |
| TLC-NSMD100 | 1.00 | 2.00 | 6 | 100 | 8.0 | 0.10 | 0.60 | 0.070 | 0.280 | Download |
| TLC-NSMD075/16 | 0.75 | 1.50 | 16 | 100 | 8.00 | 0.10 | 0.40 | 0.100 | 0.400 | Download |
| TLC-NSMD075/13.2 | 0.75 | 1.50 | 13.2 | 100 | 8.00 | 0.10 | 0.40 | 0.100 | 0.400 | Download |
| TLC-NSMD075/8 | 0.75 | 1.50 | 8 | 100 | 8.00 | 0.110 | 0.40 | 0.100 | 0.400 | Download |
| TLC-NSMD075 | 0.75 | 1.50 | 6 | 100 | 8.00 | 0.10 | 0.40 | 0.100 | 0.400 | Download |
| TLC-NSMD050/30 | 0.50 | 1.00 | 30 | 40 | 8.00 | 0.10 | 0.50 | 0.150 | 1.100 | Download |
| TLC-NSMD050/24 | 0.50 | 1.00 | 24 | 40 | 8.00 | 0.10 | 0.50 | 0.150 | 1.100 | Download |
| TLC-NSMD050/16 | 0.50 | 1.00 | 16 | 40 | 8.00 | 0.10 | 0.40 | 0.150 | 0.750 | Download |
| TLC-NSMD050/8 | 0.50 | 1.00 | 8 | 100 | 8.00 | 0.10 | 0.60 | 0.150 | 0.750 | Download |
| TLC-NSMD050 | 0.50 | 1.00 | 13.2 | 40 | 8.00 | 0.10 | 0.40 | 0.150 | 0.700 | Download |
| TLC-NSMD035/24 | 0.35 | 0.75 | 24 | 40 | 8.00 | 0.10 | 0.60 | 0.300 | 1.200 | Download |
| TLC-NSMD035/16 | 0.35 | 0.75 | 16 | 40 | 8.00 | 0.10 | 0.60 | 0.300 | 1.200 | Download |
| TLC-NSMD035 | 0.35 | 0.75 | 6 | 40 | 8.00 | 0.10 | 0.60 | 0.300 | 1.200 | Download |
| TLC-NSMD025/24 | 0.25 | 0.55 | 24 | 10 | 1.25 | 0.60 | 0.60 | 0.400 | 2.400 | Download |
| TLC-NSMD025 | 0.25 | 0.55 | 16 | 10 | 1.25 | 0.10 | 0.60 | 0.400 | 1.800 | Download |
| TLC-NSMD020/30 | 0.20 | 0.46 | 30 | 60 | 1.00 | 0.60 | 0.6 | 0.600 | 3.300 | Download |
| TLC-NSMD020 | 0.20 | 0.46 | 24 | 10 | 8.00 | 0.10 | 0.60 | 0.600 | 2.600 | Download |
| TLC-NSMD012/48 | 0.12 | 0.29 | 48 | 10 | 1.00 | 0.20 | 0.40 | 1.350 | 8.500 | Download |
| TLC-NSMD012 | 0.12 | 0.29 | 30 | 10 | 8.00 | 0.10 | 0.40 | 1.350 | 8.500 | Download |
| TLC-NSMD010/48 | 0.10 | 0.25 | 48 | 10 | 0.50 | 1.20 | 0.40 | 1.400 | 15.00 | Download |
| TLC-NSMD010 | 0.10 | 0.25 | 30 | 10 | 0.50 | 1.20 | 0.40 | 1.400 | 15.00 | Download |
| TLC-NSMD005/60 | 0.05 | 0.15 | 60 | 10 | 0.25 | 1.50 | 0.40 | 2.500 | 40.00 | Download |
| TLC-NSMD005/48 | 0.05 | 0.15 | 48 | 10 | 0.25 | 1.50 | 0.40 | 2.500 | 40.00 | Download |
| TLC-NSMD005 | 0.05 | 0.15 | 30 | 10 | 0.25 | 1.5 | 0.40 | 2.500 | 40.00 | Download |
