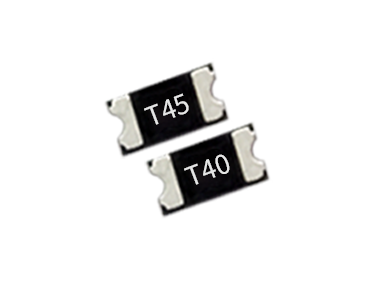

Specialist
◆Ultra low resistance
◆Surface Mount Devices
◆Surface Mount packaging for Automated assembly
◆Compatible with Pb and Pb-free solder reflow profiles
◆Fast response to fault currents
Application
◆Li-ion and Li-polymer battery packs
◆USB port protection(Including USB2.0/3.0 ports)
◆Smart wearable devices
◆Tablet and Notebook PCs
◆E-readers
◆Computers peripherals
| P/N | IH(A) | IT(A) | Vmax(V) | I max(A) | T (Max time to trip) (A) |
T (Max time to trip) (Sec) |
Pd typ（W） | R min(Ω) | R max(Ω) | Specifications |
| TLC-NSML500L | 5.00 | 10.00 | 12.0 | 50 | 25.00 | 5.00 | 1.50 | 0.001 | 0.011 | Download |
| TLC-NSML450L | 4.50 | 9.00 | 12.0 | 50 | 22.50 | 5.00 | 1.50 | 0.002 | 0.016 | Download |
| TLC-NSML400L | 4.00 | 8.00 | 12.0 | 50 | 20.00 | 2.00 | 1.50 | 0.002 | 0.016 | Download |
| TLC-NSML380L | 3.80 | 7.60 | 12.0 | 50 | 19.00 | 2.00 | 1.50 | 0.003 | 0.018 | Download |
| TLC-NSML350L | 3.50 | 7.00 | 12.0 | 50 | 17.50 | 2.00 | 1.50 | 0.003 | 0.020 | Download |
