Specialist

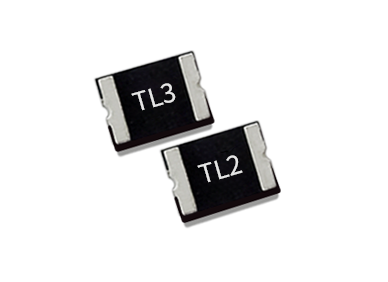

◆ Surface Mount Devices
◆ Standard 1210mils footprint
◆ Surface mount packaging for automated assembly
◆ Compatible with Pb and Pb-free solder reflow profiles.
◆ UL(E352136), C-UL(E352136), TUV(R50306076)
◆ RoHS, Reach, HF compliance
Application
◆ Mobile phones
◆ PC motherboards
◆ IEEE1394 ports
◆ USB port protection
◆ HDMI source protection
◆ Game console port protection
| P/N | IH(A) | IT(A) | Vmax(V) | I max(A) | T (Max time to trip) (A) |
T (Max time to trip) (Sec) |
Pd typ（W） | R min(Ω) | R max(Ω) | Specifications |
| TLC-USMD200/8 | 2.00 | 4.00 | 8 | 40 | 8.00 | 1.00 | 0.70 | 0.02 | 0.09 | Download |
| TLC-USMD200 | 2.00 | 4.00 | 6 | 40 | 8.00 | 1.00 | 0.70 | 0.02 | 0.09 | Download |
| TLC-USMD175/8 | 1.75 | 3.5 | 8 | 40 | 8.00 | 1.00 | 0.70 | 0.02 | 0.09 | Download |
| TLC-USMD175 | 1.75 | 3.5 | 6 | 40 | 8.00 | 1.00 | 0.70 | 0.02 | 0.09 | Download |
| TLC-USMD150/16 | 1.50 | 3.00 | 16 | 40 | 8.00 | 0.50 | 0.60 | 0.03 | 0.14 | Download |
| TLC-USMD150/12 | 1.50 | 3.00 | 12 | 40 | 8.00 | 0.50 | 0.6 | 0.03 | 0.14 | Download |
| TLC-USMD150/8 | 1.50 | 3.00 | 8 | 40 | 8.00 | 0.50 | 0.60 | 0.03 | 0.11 | Download |
| TLC-USMD150 | 1.50 | 3.00 | 6 | 40 | 5.00 | 5.00 | 0.60 | 0.03 | 0.11 | Download |
| TLC-USMD110/16 | 1.10 | 2.20 | 16 | 40 | 8.00 | 0.30 | 0.60 | 0.05 | 0.24 | Download |
| TLC-USMD110/12 | 1.10 | 2.20 | 12 | 40 | 8.00 | 0.30 | 0.60 | 0.05 | 0.24 | Download |
| TLC-USMD110/8 | 1.10 | 2.20 | 8 | 40 | 8.00 | 0.30 | 0.60 | 0.05 | 0.24 | Download |
| TLC-USMD110 | 1.10 | 2.20 | 6 | 40 | 5.00 | 1.00 | 0.60 | 0.05 | 0.21 | Download |
| TLC-USMD075/13.2 | 0.5 | 1.50 | 13.2 | 40 | 8.00 | 0.10 | 0.60 | 0.07 | 0.45 | Download |
| TLC-USMD075/8 | 0.75 | 1.50 | 8 | 40 | 8.00 | 0.10 | 0.60 | 0.07 | 0.45 | Download |
| TLC-USMD075 | 0.75 | 1.50 | 6 | 40 | 8.00 | 0.10 | 0.60 | 0.07 | 0.45 | Download |
| TLC-USMD050/16 | 0.50 | 1.00 | 16 | 40 | 8.00 | 0.10 | 0.60 | 0.18 | 0.90 | Download |
| TLC-USMD050 | 0.50 | 1.00 | 13.2 | 40 | 8.00 | 0.10 | 0.60 | 0.18 | 0.90 | Download |
| TLC-USMD035/24 | 0.35 | 0.75 | 24 | 40 | 8.00 | 0.20 | 0.60 | 0.20 | 1.30 | Download |
| TLC-USMD035/16 | 0.35 | 0.75 | 16 | 40 | 8.00 | 0.20 | 0.60 | 0.20 | 1.30 | Download |
| TLC-USMD035/12 | 0.35 | 0.75 | 12 | 40 | 8.00 | 0.20 | 0.60 | 0.20 | 1.30 | Download |
| TLC-USMD035 | 0.30 | 0.75 | 6 | 40 | 8.00 | 0.20 | 0.60 | 0.20 | 1.30 | Download |
| TLC-USMD020/24 | 0.20 | 0.40 | 24 | 10 | 8.00 | 0.02 | 0.60 | 0.40 | 5.00 | Download |
| TLC-USMD020 | 0.20 | 0.40 | 30 | 10 | 8.00 | 0.02 | 0.60 | 0.40 | 5.00 | Download |
| TLC-USMD010/50 | 0.10 | 0.30 | 50 | 10 | 0.50 | 0.60 | 0.60 | 0.80 | 15.00 | Download |
| TLC-USMD010 | 0.10 | 0.30 | 30 | 10 | 0.50 | 0.60 | 0.60 | 0.80 | 15.00 | Download |
| TLC-USMD005/50 | 0.05 | 0.15 | 50 | 10 | 0.25 | 1.50 | 0.60 | 2.80 | 50.00 | Download |
| TLC-USMD005 | 0.05 | 0.15 | 30 | 10 | 0.25 | 3.00 | 0.60 | 2.80 | 50.00 | Download |
