Specialist

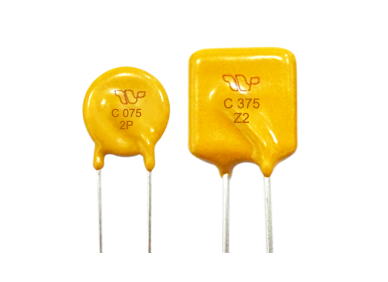

◆ Radial Leaded Devices
◆ Cured, flame retardant epoxy polymer insulating material meets UL 94V-0 requirements
◆ Bulk Package, or tape and reel available on most models
◆ UL(Pending), C-UL(Pending), TUV(R50322003)
◆ RoHS, Reach, HF compliance
Application
Almost anywhere there is a low voltage power supply,
up to 60V and a load to be protected, including:
◆ Personal computer
◆ Toys
◆ Industrial controls
| P/N | IH(A) | IT(A) | Vmax(V) | I max(A) | T (Max time to trip) (A) |
T (Max time to trip) (Sec) |
Pd typ（W） | R min(Ω) | R max(Ω) | Specifications |
| TRC500 | 5.00 | 10.0 | 60/72 | 40 | 25.0 | 24.0 | 3.2 | 0.02 | 0.05 | Download |
| TRC375 | 3.75 | 7.50 | 60/72 | 40 | 18.75 | 24.0 | 3.20 | 0.03 | 0.05 | Download |
| TRC300 | 3.00 | 6.00 | 60/72 | 40 | 15.00 | 19.8 | 2.80 | 0.04 | 0.06 | Download |
| TRC250 | 2.50 | 5.00 | 60/72 | 40 | 12.50 | 15.6 | 2.50 | 0.05 | 0.08 | Download |
| TRC210 | 2.10 | 4.20 | 60/72 | 40 | 10.5 | 12.6 | 2.10 | 0.07 | 0.12 | Download |
| TRC185 | 1.85 | 3.70 | 60/72 | 40 | 9.25 | 12.6 | 2.10 | 0.08 | 0.12 | Download |
| TRC160 | 1.60 | 3.20 | 60/72 | 40 | 8.00 | 11.4 | 1.90 | 0.09 | 0.14 | Download |
| TRC135 | 1.35 | 2.70 | 60/72 | 40 | 6.75 | 9.6 | 1.70 | 0.12 | 0.19 | Download |
| TRC110 | 1.10 | 2.20 | 60/72 | 40 | 5.50 | 8.2 | 1.50 | 0.15 | 0.25 | Download |
| TRC090 | 0.90 | 1.80 | 60/72 | 40 | 4.50 | 7.2 | 1.00 | 0.14 | 0.31 | Download |
| TRC075 | 0.75 | 1.50 | 60/72 | 40 | 3.75 | 6.3 | 0.90 | 0.23 | 0.45 | Download |
| TRC065 | 0.65 | 1.30 | 60/72 | 40 | 3.25 | 5.3 | 0.90 | 0.24 | 0.54 | Download |
| TRC050 | 0.50 | 1.00 | 60/72 | 40 | 2.50 | 4.0 | 0.75 | 0.38 | 0.78 | Download |
| TRC040 | 0.40 | 0.80 | 60/72 | 40 | 2.00 | 3.8 | 0.55 | 0.48 | 0.95 | Download |
| TRC035 | 0.35 | 0.70 | 60/72 | 40 | 1.75 | 3.0 | 0.50 | 0.48 | 0.95 | Download |
| TRC030 | 0.30 | 0.60 | 60/72 | 40 | 1.50 | 3.0 | 0.50 | 0.70 | 1.36 | Download |
| TRC025 | 0.25 | 0.50 | 60/72 | 40 | 1.25 | 2.5 | 0.45 | 0.90 | 1.95 | Download |
| TRC020 | 0.20 | 0.40 | 60/72 | 40 | 1.00 | 2.2 | 0.40 | 1.30 | 2.84 | Download |
| TRC017 | 0.17 | 0.34 | 60/72 | 40 | 0.85 | 3.0 | 0.48 | 2.00 | 5.21 | Download |
| TRC010 | 0.10 | 0.20 | 60 | 40 | 0.50 | 4.0 | 0.38 | 2.30 | 8.10 | Download |
| TRC005 | 0.05 | 0.15 | 60 | 40 | 0.25 | 5.0 | 0.22 | 7.30 | 11.10 | Download |
