Specialist

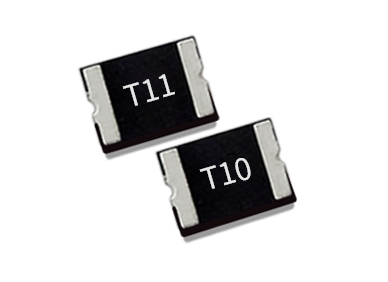

◆ Surface Mount Devices
◆ Standard 7555mm(2920mils) footprint
◆ Surface mount packaging for automated assembly
◆ Compatible with Pb and Pb-free solder re flow profiles.
◆ UL(Pending), C-UL(Pending), TUV(Pending)
◆ RoHS，Reach，HF compliance
Application
◆ Computer mother borad,Modem
◆ Industrial controls
◆ IEEE ports
◆ Portable electronics
| P/N | IH(A) | IT(A) | Vmax(V) | I max(A) | T (Max time to trip) (A) |
T (Max time to trip) (Sec) |
Pd typ（W） | R min(Ω) | R max(Ω) | Specifications |
| TLC-LSMD500/8 | 5.00 | 10.00 | 8 | 40 | 25.0 | 5 | 1.5 | 0.005 | 0.018 | Download |
| TLC-LSMD500 | 5.00 | 10.00 | 16 | 40 | 25.0 | 5 | 1.5 | 0.005 | 0.022 | Download |
| TLC-LSMD450 | 4.50 | 9.00 | 16 | 40 | 22.5 | 5.0 | 1.5 | 0.005 | 0.020 | Download |
| TLC-LSMD400 | 4.00 | 8.00 | 16 | 40 | 20 | 5 | 1.5 | 0.007 | 0.035 | Download |
| TLC-LSMD300D/16 | 3.00 | 6.00 | 16 | 40 | 8.0 | 25 | 1.5 | 0.010 | 0.055 | Download |
| TLC-LSMD300D | 3.00 | 6.00 | 24 | 100 | 8.0 | 20.0 | 1.5 | 0.010 | 0.055 | Download |
| TLC-LSMD300 | 3.00 | 6.00 | 12 | 40 | 8.0 | 25 | 1.5 | 0.010 | 0.055 | Download |
| TLC-LSMD260D | 2.60 | 5.20 | 24 | 100 | 8.0 | 18.0 | 1.5 | 0.014 | 0.075 | Download |
| TLC-LSMD260 | 2.60 | 5.20 | 16 | 40 | 8.0 | 20 | 1.5 | 0.014 | 0.075 | Download |
| TLC-LSMD250 | 2.50 | 5.00 | 16 | 40 | 8.0 | 16.0 | 1.5 | 0.018 | 0.085 | Download |
| TLC-LSMD200 | 2.00 | 4.00 | 16 | 40 | 8.0 | 4.5 | 1.5 | 0.020 | 0.120 | Download |
| TLC-LSMD185 | 1.85 | 3.70 | 33 | 100 | 8.0 | 2.0 | 1.5 | 0.030 | 0.150 | Download |
| TLC-LSMD150 | 1.50 | 3.00 | 33 | 40 | 8.0 | 2.0 | 1.5 | 0.035 | 0.230 | Download |
| TLC-LSMD125 | 1.25 | 2.50 | 33 | 40 | 8.0 | 2.0 | 1.5 | 0.050 | 0.250 | Download |
| TLC-LSMD100 | 1.00 | 2.00 | 33 | 40 | 8.0 | 0.5 | 1.5 | 0.065 | 0.410 | Download |
| TLC-LSMD075/60 | 0.75 | 1.50 | 60 | 40 | 8.0 | 0.3 | 1.5 | 0.100 | 1.000 | Download |
| TLC-LSMD075 | 0.75 | 1.50 | 33 | 40 | 8.0 | 0.3 | 1.5 | 0.100 | 1.000 | Download |
| TLC-LSMD050/50 | 0.50 | 1.00 | 50 | 10 | 2.5 | 3.0 | 1.5 | 0.180 | 1.400 | Download |
| TLC-LSMD050 | 0.50 | 1.00 | 60 | 10 | 2.5 | 3.0 | 1.5 | 0.180 | 1.400 | Download |
| TLC-LSMD030/50 | 0.30 | 0.60 | 50 | 10 | 1.5 | 3.0 | 1.5 | 0.600 | 4.300 | Download |
| TLC-LSMD030 | 0.30 | 0.60 | 60 | 10 | 1.5 | 3.0 | 1.5 | 0.600 | 4.300 | Download |
