Specialist

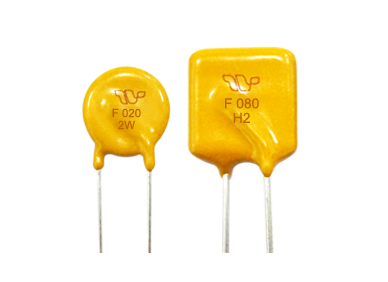

◆ Radial Leaded Devices
◆ Cured, flame retardant epoxy polymer insulating material meets UL 94V-0 requirements
◆ Bulk Package, or tape and reel available on most models
◆ UL(Pending), C-UL(Pending), TUV(R50322002)
◆ RoHS, Reach, HF compliance
Application
Almost anywhere there is a low voltage power supply,
up to DC60V and a load to be protected, including:
◆ Security and fire alarm systems
◆ Analog and digital line cards
◆ Modems and DSL
| P/N | IH(A) | IT(A) | Vmax(V) | I max(A) | T (Max time to trip) (A) |
T (Max time to trip) (Sec) |
Pd typ（W） | R min(Ω) | R max(Ω) | Specifications |
| TRF200 | 2.000 | 4.00 | 60 | 20.0 | 10.0 | 28 | 4.5 | 0.09 | 0.192 | Download |
| TRF150 | 1.500 | 3.00 | 60 | 15.0 | 7.50 | 25.0 | 3.5 | 0.12 | 0.28 | Download |
| TRF100 | 1.000 | 2.00 | 60 | 10.0 | 5.0 | 21 | 2.9 | 0.22 | 0.50 | Download |
| TRF080 | 0.800 | 1.60 | 60 | 8.0 | 4.0 | 18 | 3.6 | 0.32 | 0.80 | Download |
| TRF060 | 0.600 | 1.20 | 60 | 7.0 | 3.0 | 12 | 3.2 | 0.40 | 1.10 | Download |
| TRF050 | 0.500 | 1.00 | 60 | 6.0 | 3.0 | 10 | 3.0 | 0.56 | 1.40 | Download |
| TRF040 | 0.400 | 0.800 | 60 | 5.5 | 3.0 | 8 | 1.8 | 0.80 | 1.60 | Download |
| TRF030 | 0.300 | 0.60 | 60 | 3.0 | 3.0 | 6.0 | 1.8 | 1.0 | 2.2 | Download |
| TRF020 | 0.200 | 0.6 | 60 | 3.0 | 3.0 | 5.0 | 1.8 | 1.7 | 3.5 | Download |
| TRF018U | 0.180 | 0.54 | 60 | 3.0 | 3.0 | 1.5 | 1.8 | 1.0 | 2.2 | Download |
| TRF018 | 0.180 | 0.54 | 60 | 3.0 | 3.0 | 1.5 | 1.8 | 1.0 | 2.2 | Download |
| TRF014U | 0.145 | 0.29 | 60 | 3.0 | 1.0 | 2.5 | 10 | 3.5 | 6.5 | Download |
| TRF014 | 0.145 | 0.29 | 60 | 3.0 | 1.00 | 2.5 | 1.0 | 3.0 | 6.0 | Download |
| TRF012U | 0.120 | 0.240 | 60 | 3.0 | 1.00 | 1.5 | 1.0 | 6.0 | 10.0 | Download |
| TRF012 | 0.120 | 0.240 | 60 | 3.0 | 1.00 | 3.0 | 1.0 | 6.0 | 10.0 | Download |
| TRF011 | 0.110 | 0.220 | 60 | 3.0 | 1.00 | 1.0 | 1.0 | 6.0 | 12.0 | Download |
| TRF009 | 0.090 | 0.220 | 60 | 3.0 | 1.00 | 1.0 | 1.0 | 9.7 | 20.6 | Download |
| TRF008 | 0.080 | 0.160 | 60 | 3.0 | 0.35 | 4.0 | 1.0 | 14.0 | 22.0 | Download |
| TRF006 | 0.060 | 0.120 | 60 | 3.0 | 0.30 | 3.0 | 1.0 | 22.0 | 36.0 | Download |
| TRF004 | 0.040 | 0.080 | 60 | 3.0 | 0.20 | 3.0 | 1.0 | 24 | 65.0 | Download |
| TRF002 | 0.020 | 0.045 | 60 | 3.0 | 0.10 | 3.0 | 1.0 | 65 | 145 | Download |
