Specialist

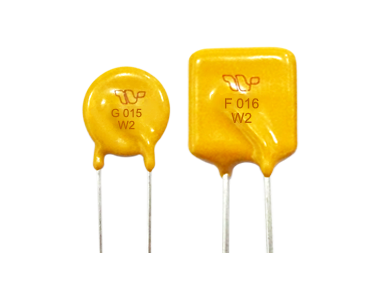

◆ Radial Leaded Devices
◆ Cured, flame retardant epoxy polymer insulating material meets UL 94V-0 requirements
◆ Meet RoHs,Reach,standard
◆ Voltage：600Vac
◆ UL(Pending), C-UL(Pending), TUV(R50322002)
◆ RoHS, Reach, HF compliance
Application
◆ ADSL,PBX,MDF,VOIp,IAN,WAN,T1/E1
| P/N | IH(A) | IT(A) | Vmax(V) | I max(A) | T (Max time to trip) (A) |
T (Max time to trip) (Sec) |
Pd typ（W） | R min(Ω) | R max(Ω) | Specifications |
| TRG025 | 0.25 | 0.50 | 250 | 3.0 | 1.00 | 20 | 1.7 | 2.0 | 4.5 | Download |
| TRG020 | 0.20 | 0.40 | 250 | 3.0 | 1.00 | 15 | 1.7 | 2.5 | 6.5 | Download |
| TRG016 | 0.16 | 0.32 | 250 | 3.0 | 1.00 | 7.5 | 1.7 | 4.0 | 10.0 | Download |
| TRG015 | 0.15 | 0.30 | 250 | 3.0 | 1.00 | 5.0 | 1.0 | 6.0 | 12.0 | Download |
| TRG011 | 0.11 | 0.22 | 250 | 3.0 | 1.00 | 4.0 | 1.0 | 7.0 | 14.0 | Download |
| TRG006 | 0.06 | 0.12 | 250 | 3.0 | 0.50 | 2.0 | 1.0 | 20.0 | 35.0 | Download |
