Specialist

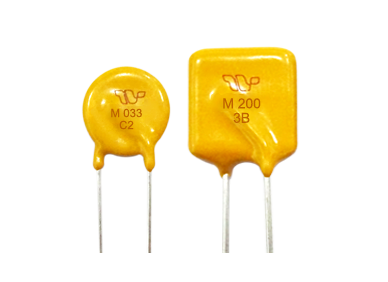

◆ Radial Leaded Devices
◆ Cured, flame retardant epoxy polymer insulating material meets UL 94V-0 requirements
◆ Meet RoHs,Reach,standard
◆ Voltage：120Vac and 240Vac
◆ UL(Pending), C-UL(Pending), TUV(R50322002)
◆ RoHS, Reach, HF compliance
Application
◆ Security and fire alarm systems
◆ Mot er,Blower
◆ Electronics load
◆ Modems and DSL
◆ Medical equipment
◆ POS
◆ GPS re ceicer
◆ Industrial control
| P/N | IH(A) | IT(A) | Vmax(V) | I max(A) | T (Max time to trip) (A) |
T (Max time to trip) (Sec) |
Pd typ（W） | R min(Ω) | R max(Ω) | Specifications |
| TRM200 | 2.00 | 4.00 | 240 | 20.0 | 10.0 | 28.0 | 4.5 | 0.09 | 0.16 | Download |
| TRM150 | 1.50 | 3.00 | 240 | 15.0 | 7.50 | 25.0 | 3.5 | 0.12 | 0.28 | Download |
| TRM125 | 1.25 | 2.50 | 240 | 12.5 | 6.25 | 23.0 | 3.3 | 0.16 | 0.35 | Download |
| TRM100 | 1.00 | 2.00 | 240 | 10.0 | 5.00 | 21.0 | 2.9 | 0.22 | 0.42 | Download |
| TRM075 | 0.75 | 1.50 | 240 | 7.5 | 3.75 | 18.0 | 2.6 | 0.32 | 0.62 | Download |
| TRM055 | 0.55 | 1.25 | 240 | 7.0 | 2.75 | 26.0 | 3.4 | 0.45 | 0.84 | Download |
| TRM040 | 0.40 | 0.90 | 240 | 5.5 | 2.00 | 24.0 | 2.0 | 0.60 | 1.12 | Download |
| TRM033 | 0.33 | 0.74 | 240 | 4.5 | 1.65 | 18.5 | 1.7 | 0.83 | 1.8 | Download |
| TRM025 | 0.25 | 0.56 | 240 | 3.5 | 1.25 | 18.5 | 1.5 | 1.3 | 2.42 | Download |
| TRM016 | 0.16 | 0.37 | 240 | 2.0 | 0.80 | 15 | 1.4 | 2.5 | 4.65 | Download |
| TRM012 | 0.15 | 0.30 | 240 | 1.2 | 0.60 | 15 | 1.0 | 3.0 | 5.58 | Download |
| TRM008 | 0.08 | 0.19 | 240 | 1.2 | 0.40 | 10 | 0.8 | 7.4 | 13.8 | Download |
| TRM005 | 0.05 | 0.12 | 240 | 1.0 | 0.25 | 10 | 0.7 | 18.5 | 34.4 | Download |
