Specialist

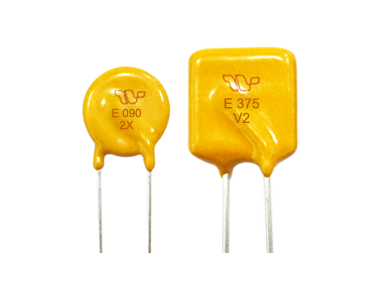

◆ Radial Leaded Devices
◆ Cured, flame retardant epoxy polymer insulating material meets UL 94V-0 requirements
◆ Operation current: 0.10A~ 5.00A
◆ I max: 2A~ 20A;V max: 120Vac/dc
◆ Max. interrupt voltage: 135Vac/dc
◆ UL(Pending), C-UL(Pending), TUV(R50322002)
◆ RoHS, Reach, HF compliance
Application
◆ Line Voltage application
◆ Set-top boxes
◆ Broadband cable power passing taps
| P/N | IH(A) | IT(A) | Vmax(V) | I max(A) | T (Max time to trip) (A) |
T (Max time to trip) (Sec) |
Pd typ（W） | R min(Ω) | R max(Ω) | Specifications |
| TRE500 | 5.00 | 10.0 | 120 | 27.5 | 25.00 | 24.0 | 4.80 | 0.02 | 0.06 | Download |
| TRE375 | 3.75 | 7.50 | 120 | 25.0 | 18.75 | 24.0 | 4.80 | 0.03 | 0.08 | Download |
| TRE300 | 3.00 | 6.00 | 120 | 17.0 | 15.00 | 19.8 | 4.56 | 0.04 | 0.10 | Download |
| TRE250 | 2.50 | 5.00 | 120 | 15.0 | 12.50 | 15.6 | 4.44 | 0.05 | 0.13 | Download |
| TRE200 | 2.00 | 4.00 | 120 | 15.0 | 10.00 | 36.0 | 4.32 | 0.08 | 0.16 | Download |
| TRE185 | 1.85 | 3.70 | 120 | 12.0 | 9.25 | 12.6 | 3.36 | 0.08 | 0.17 | Download |
| TRE160 | 1.60 | 3.20 | 120 | 12.0 | 8.00 | 16.4 | 3.12 | 0.09 | 0.20 | Download |
| TRE135 | 1.35 | 2.70 | 120 | 10.0 | 6.75 | 20.0 | 3.12 | 0.11 | 0.30 | Download |
| TRE130 | 1.30 | 2.60 | 120 | 10.0 | 6.50 | 20.0 | 2.64 | 0.11 | 0.30 | Download |
| TRE125 | 1.25 | 2.50 | 120 | 10.0 | 6.25 | 20.0 | 2.88 | 0.11 | 0.30 | Download |
| TRE110 | 1.10 | 2.20 | 120 | 10.0 | 5.50 | 15.0 | 2.28 | 0.15 | 0.38 | Download |
| TRE100 | 1.00 | 2.00 | 120 | 10.0 | 5.00 | 15.0 | 2.64 | 0.16 | 0.38 | Download |
| TRE090 | 0.90 | 1.80 | 120 | 7.5 | 4.5 | 7.2 | 1.80 | 0.18 | 0.40 | Download |
| TRE075 | 0.75 | 1.50 | 120 | 7.5 | 3.75 | 7.0 | 2.64 | 0.20 | 0.60 | Download |
| TRE070 | 0.75 | 1.50 | 120 | 5.0 | 3.50 | 6.3 | 1.80 | 0.25 | 0.70 | Download |
| TRE065 | 0.65 | 1.30 | 120 | 5.0 | 3.25 | 6.0 | 1.68 | 0.25 | 0.70 | Download |
| TRE055U | 0.55 | 1.10 | 120 | 3.0 | 2.75 | 6.0 | 1.56 | 0.30 | 0.90 | Download |
| TRE055 | 0.55 | 1.10 | 120 | 3.0 | 2.75 | 6.0 | 1.56 | 0.30 | 0.90 | Download |
| TRE050 | 0.50 | 1.00 | 120 | 3.0 | 2.5 | 6.0 | 1.56 | 0.40 | 1.00 | Download |
| TRE040 | 0.40 | 0.80 | 120 | 3.0 | 2.0 | 6.5 | 1.44 | 0.50 | 1.10 | Download |
| TRE035 | 0.35 | 0.70 | 120 | 3.0 | 1.75 | 8.5 | 1.44 | 0.60 | 1.20 | Download |
| TRE030 | 0.30 | 0.60 | 120 | 3.0 | 1.50 | 8.5 | 1.44 | 0.70 | 1.80 | Download |
| TRE025 | 0.25 | 0.50 | 120 | 3.0 | 1.25 | 8.5 | 1.08 | 0.80 | 2.00 | Download |
| TRE020 | 0.20 | 0.40 | 120 | 2.0 | 1.00 | 9.0 | 1.08 | 1.00 | 2.50 | Download |
| TRE017 | 0.17 | 0.34 | 120 | 2.0 | 0.85 | 11.0 | 0.85 | 1.40 | 3.80 | Download |
| TRE015 | 0.15 | 0.30 | 120 | 2.0 | 0.75 | 11.0 | 0.85 | 1.50 | 4.00 | Download |
| TRE010 | 0.10 | 0.20 | 120 | 2.0 | 0.50 | 11.0 | 0.85 | 2.50 | 5.50 | Download |
